Jackery SolarSaga 100W Solar Panel, stay charged with the power of the sun! With high conversion efficiency up to 25%, it's ideally suited for outdoor life and even unexpected power outages. The solar panel weighs only 8 lbs, it's lightweight, foldable and with an easy-carry handle, making it more portable.

• Easy Setup & Kickstand Included: The Solar Saga 100 features 2 kickstands that can be placed firmly on any surface ground. With just a few seconds of setup, you can start soaking energy from the sun for your Jackery power station. The TPE rubber handle allows you to carry around easily when taking off-grid adventures.
• Higher Energy Conversion Rate: Covered by monocrystalline silicon solar cells, the solar panel adopts multi-layered cell technology to generate energy from the sunlight and perform better with higher conversion efficiency that up to 25% than other conventional panels.
• Durable & Splash-Proof: The ETFE-laminated case is durable enough to extend the lifespan of the solar panel. It is IP68 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port.
• Compatible & Versatile: This solar panel is compatible with Jackery Explorer 240 v2/500/1000 v2/2000 v2/1000 Plus/2000 Plus power station (sold separately), ideal for off-grid camping and unexpected power outage. Solar Saga 100 features 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port to charge 2 small devices directly.

Features Summary

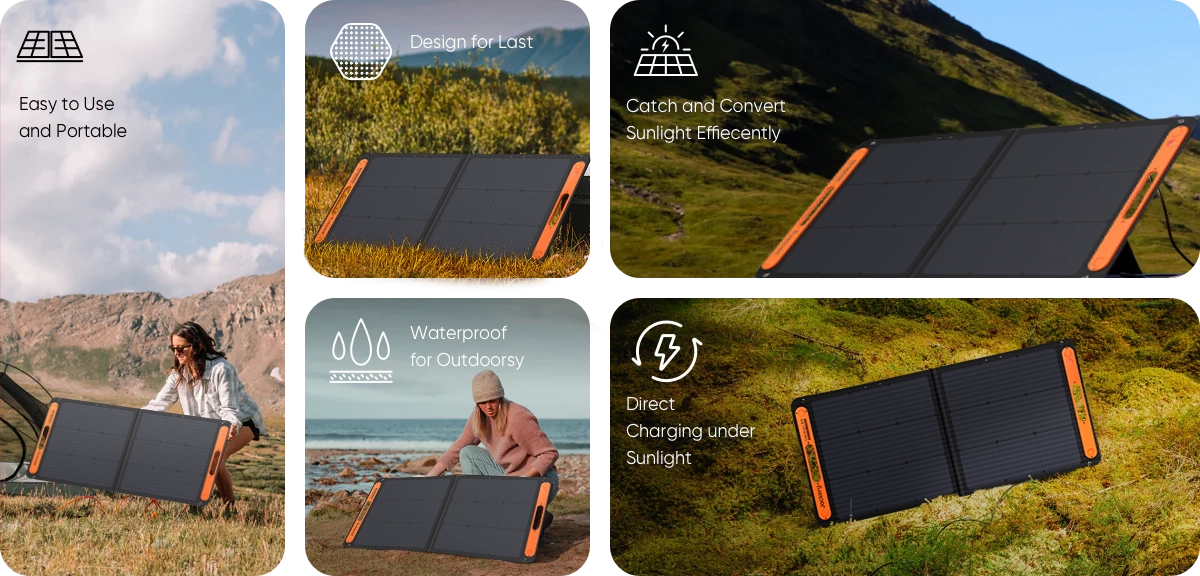

Catch and Convert Sunlight Efficiently

The solar panels are made with high-efficiency monocrystalline cells and feature a honeycomb light trapping design, delivering an impressive efficiency of up to 25%. Equipped with adjustable stands, these panels are designed to maximize solar energy capture in a variety of conditions.

Instant Set Up Solar Energy System. Within 60 seconds to set up, the solar panel stands firmly and can ensure optimum absorption of the sunlight thanks to its adjustable kickstands. It is the perfect companion for outdoor travel.

Foldable design for easy transport. It's also compact and lightweight for carrying on your outdoor activities. Simply fold the solar panel in two, in seconds and you'll be good to go, with convenient solar at your fingertips in an instant.

Designed to Last

The ETFE-laminated design make it extremely temperature and corrosion resitant, with a functioning temperature range of -10-65°C (14-149°F). The battery grid is designed on the back of the panel, preventing battery cracks whilst giving longer battery life.

IP68 Waterproof for Outdoorsy

It is IP68 water-resistant, protecting it from water splashing (Do not place it under the rain or soak in water). The zippers on the pocket can hold the power cords, and cover the power port.

Direct Charging Under Sunlight

Jackery SolarSaga 100W solar panel features 1* USB-C (5V,3A) output port and 1* USB-A (5V, 2.4A) output port to charge 2 small devices like phones, and fans directly. Instant and convenient power to your appliances, both indoors and outdoors with magnificent solar power!

Product Details

Specs in Pictures





Specs

SolarSaga 100W Solar Panel

General

Weight:7.9 lbs (3.6 kg)

Warranty:3+2 Years

Waterproof:IP68

Efficiency rate:25%

Charging Lead length:3 Metres

Operating temperature:-4℉~149℉ (-20°C~65°C)

Protection Class Against Electric Shock:Class II

Ports

USB-A Output:5V⎓2.4A

USB-C Output:5V⎓3A

Solar

Peak Power:STC: 100W±5W, BNPI: 104W±5W

Power Voltage:STC: 20.0V±5%, BNPI: 20.1V±5%

Power Current:STC: 5.0A±5%, BNPI: 5.2A±5%

Open Circuit Voltage:STC: 24.8V±5%, BNPI: 25V±5%

Short Circuit Current:STC: 5.4A±5%, BNPI: 5.8A±5%

Maximum System Voltage:60V

Maximum Reverse Current:15A

Bifaciality Coefficient (back/front):Pmax>30%, Voc>95%, Isc>32%

Dimensions

Folded:24 x 21.7 x 1.4 in (61 x 55.2 x 3.5 cm)

Unfolded:48.0 x 21.7 x 0.8 in (122 x 55.2 x 2.0 cm)
